Changzhou DEGA Machinery Co.,Ltd. lee@dega-changzhou.com 86-519-87871858-87871558
Product Details
Place of Origin: China
Brand Name: DEGA
Certification: CE, IOS 9001: 2015
Model Number: Termotech PLUS
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden packing
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per Month

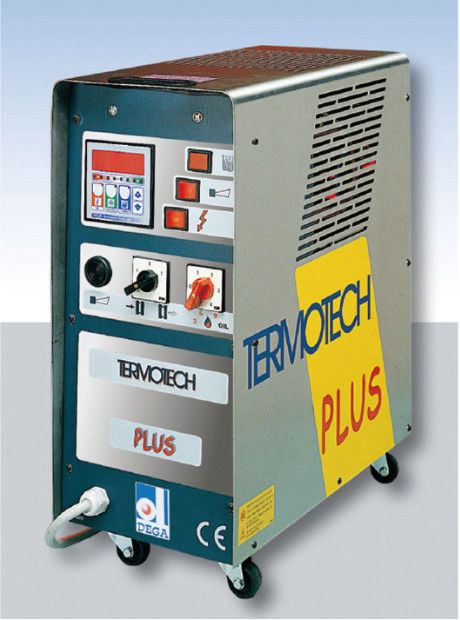

Termotech PLUS
Product Intrudaction
TERMOTECH PLUS is the most versatile machine of the range; it is possible to regulate the temperature of the water up to 95° C. and oil up to 150° C., in continuous pressure and vacuum, with variable powers between 3 and 9 Kw. The Plus can be interfaced and programmed with the control of the machine it is matched to.
Termotech
TERMOTECH 200L Machine designed for the thermo regulation of large moulds where they normally require a large flow of water and low temperature, particularly suitable in AUTOMOTIVE sector for the thermo regulation of bumper moulds and dashboards.
Very good also for the thermo regulation of calenders for forming slabs of PC, PVC, PA, PET, ABS, PS, PMMA, etc.
TERMOTECH AIR, thermo-regulator suitable for the rubber and thermosetting industry or where warming is more requested than cooling.
TECHNICAL FEATURES
| PROPERTIES | PLUS |
| HEATING AGENT | W/O |
| HEATING POWER (KW) | 3+3+3 |
| HEATING EXCHANGE TYPE | IND |
| MAX FLOW RATE (I/MIN) | 150 |
| CAPACITY OF TANK (I) | 15 |
| POWER OF PUMP (KW) | 0.72 |
| MAX FLOW RATE(I/MIN) | 38 |
| PRESSURE GAUGE | ○ |
| FILTER OF INLET | ○ |
| AUTOMATIC WATER ADDING | ○ |
| DIMENSION(L*W*H) | 495x250x520 |
| NET WEIGHT (KG) | 40 |
●Included ○Optional
