Product Details
Place of Origin: China
Brand Name: DEGA
Certification: CE, IOS 9001: 2015
Model Number: Activated Hopper Φ400mm - Φ1000mm
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packaging
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per Month
Product Name: |
Activated Hopper |
Working Temperature: |
Normal Atmospheric Temperature |
Working Pressure: |
Atmospheric Pressure |
Customization: |
Available |
Power Specifications: |
3P 380V |
Warranty: |
1 Year |
Product Name: |
Activated Hopper |
Working Temperature: |
Normal Atmospheric Temperature |
Working Pressure: |
Atmospheric Pressure |
Customization: |
Available |
Power Specifications: |
3P 380V |
Warranty: |
1 Year |

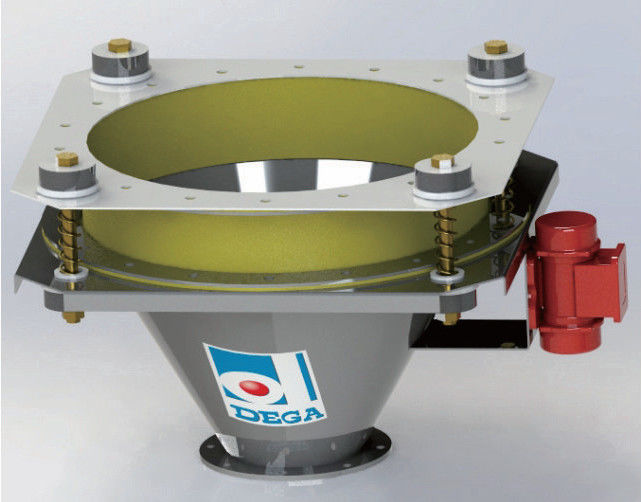

Activated Hopper / Vibrating Hopper
Product Introduction
The activated hopper installed at the bottom of the storage tank, and it can be selected according to the size of storage tank. The materials are activated by vibration, which can effectively eliminate the arching, blocking and sticking of materials, and solve the problem of difficult discharge of the silo. It has good durability.
Application Area
The activated hopper is widely used in chemical industry, building materials, metallurgy, machinery manufacturing, grain and food processing, feed processing, environmental protection, ceramics and other industries.
Product Specification
| Model | Diameter | Thickness | Power KW | Dimension |
| AH400 | Φ400 | 2mm | 0.09 | 355x717x587 |
| AH600 | Φ600 | 2mm | 0.09 | 525x851x720 |
| AH750 | Φ750 | 3mm | 0.09 | 692x1028x885 |
| AH1000 | Φ1000 | 4mm | 0.09 | 720x1292x1150 |
Outline Drawing
