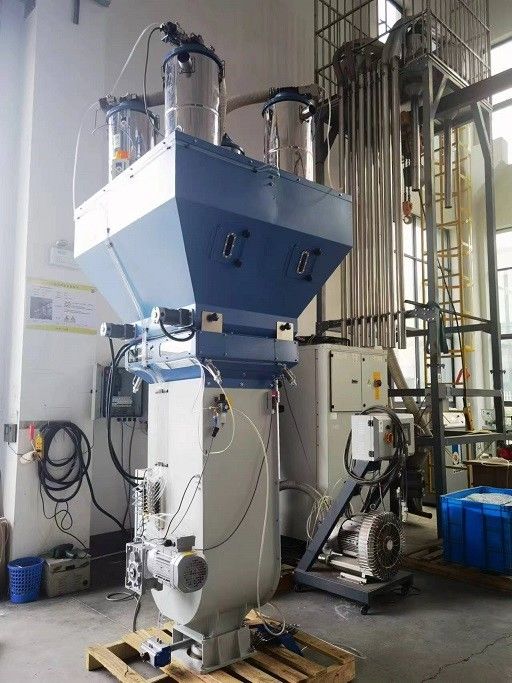

GDM1000-5 Gravimetric Dosing System 700kg/H Plastic Mixing Blending Machine

5 Components Gravimetric dosing system 700kg / h Plastic Mixing / Blending Machine GDM1000 - 5

Product Introduction:

Gravimetric dosing particularly suitable for injection moulding, blow moulding machines and extruders, filling and packaging machines for granulated and powdery material. The solid steel machine frame and the particular software allow its installation even on machines with constant and controlled vibration. The different types of construction allow the combination of 2 to 8 components, differently dosed in small amounts with normal dosing screw.

Differentiation in programming and managing recipes is effortless and straightforward: operators can readily adjust dosing percentages. Each function on the control touch screen is denoted by a symbol representing the programmed part, and in the event of any malfunction, every component is visually represented on the screen. This ease of use sets our system apart.

Struction specifications of GDM1000-5:

Structure body:

• 5 types of material maximum
• Original double weighing sensor
• Ribbon mixer, mixing silo volume 38L, guarantee accurate mixing
• Automatic recalibration
• Solid structure to minimize the effect of the vibration of the molding machine
• Front door can be opened, quick and easy to clean

Raw material storage and discharge:

• Cylinder control piston discharge, discharge port specification Φ30/Φ40/Φ60/Φ80 optional
• Screw feeding method for small proportion of material more accurate
• Row material storage hopper volume 20-40L

NOTE: DATE ABOVE WAS TEST UNDER STANDARD CONDITION, USE ONLY FOR REFERENCE, NOT FOR ACCEPTANCE CRITERIA.

Application field:

Gravimetric dosing system used in various fields, such as food, construction materials, medical, chemical, automobile, photovoltaic and other fields.
