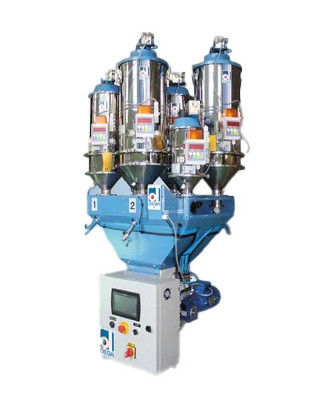

6 Components Gravimetric Dosing 600kg/H GDM1000-6 Dosing Unit For Extruder

6 Components Gravimetric dosing system 600kg / h Plastic Mixing / Blending Machine GDM1000 - 6

Product Introduction:

Gravimetric dosing particularly suitable for injection moulding, blow moulding machines and extruders, filling and packaging machines for granulated and powdery material. The solid steel machine frame and the particular software allow its installation even on machines with constant and controlled vibration. The different types of construction allow the combination of 2 to 8 components, differently dosed in small amounts with normal dosing screw.

The programming and management of the recipes is simple and easy: The operator can easily set the dosing percentages. On the control touch screen each function is indicated by a symbol that represents the part you are programming and in the case of any malfunctioning, each part is represented on the screen.

Overall, these features contribute to the efficiency, accuracy, and reliability of the dosing process, making it a valuable asset in various industrial applications.

Struction specifications of GDM1000-6:

Structure body:

• 6 types of material maximum
• Original double weighing sensor
• Ribbon mixer, mixing silo volume 38L, guarantee accurate mixing
• Automatic recalibration
• Solid structure to minimize the effect of the vibration of the molding machine
• Front door can be opened, quick and easy to clean

Raw material storage and discharge:

• Cylinder control piston discharge, discharge port specification Φ30/Φ40/Φ60/Φ80 optional
• Screw feeding method for small proportion of material more accurate
• Row material storage hopper volume 20-40L

NOTE: DATE ABOVE WAS TEST UNDER STANDARD CONDITION, USE ONLY FOR REFERENCE, NOT FOR ACCEPTANCE CRITERIA.

Application field:

Gravimetric dosing system are indeed versatile and find applications across a wide range of industries, such as food, construction materials, medical, chemical, automobile, photovoltaic and other fields.

In all these fields, gravimetric dosing systems offer advantages such as accuracy, repeatability, and the ability to handle a wide range of materials, making them indispensable tools for various manufacturing processes.
