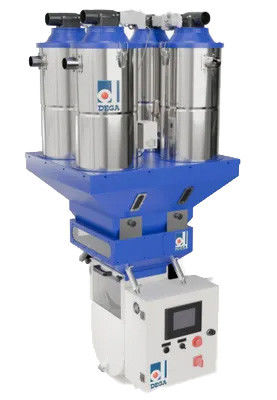

1100kg/H Gravimetric Dosing Mixing System Industrial Powder Blender GDM1500-4

4 Components Gravimetric dosing system 1100kg / h Plastic Mixing / Blending Machine GDM1500 - 4

Product Introduction:

Gravimetric dosing particularly suitable for injection moulding, blow moulding machines and extruders, filling and packaging machines for granulated and powdery material. The solid steel machine frame and the particular software allow its installation even on machines with constant and controlled vibration. The different types of construction allow the combination of 2 to 8 components, differently dosed in small amounts with normal dosing screw.

The user interface is designed for simplicity and ease of use. Operators can easily program and manage recipes by setting dosing percentages on the control touch screen. Each function is represented by intuitive symbols, simplifying the programming process. In case of any malfunction, the screen provides clear representations of each part involved, aiding troubleshooting and maintenance efforts.

Struction specifications of GDM1500-4:

Structure body:

• 4 types of material maximum
• Original double weighing sensor
• Ribbon mixer, mixing silo volume 40L, guarantee accurate mixing
• Automatic recalibration
• Solid structure to minimize the effect of the vibration of the molding machine
• Front door can be opened, quick and easy to clean

Raw material storage and discharge:

• Cylinder control piston discharge, discharge port specification Φ30/Φ40/Φ60/Φ80 optional
• Screw feeding method for small proportion of material more accurate
• Row material storage hopper volume 40-60L

NOTE: DATE ABOVE WAS TEST UNDER STANDARD CONDITION, USE ONLY FOR REFERENCE, NOT FOR ACCEPTANCE CRITERIA.

Application field:

Gravimetric dosing system used in various fields, such as food, construction materials, medical, chemical, automobile, photovoltaic and other fields.
