Product Details
Place of Origin: China
Brand Name: DEGA
Certification: CE, IOS 9001: 2015
Model Number: LW-LQ100
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export Packaging
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per Month
Product Name: |
Loss-in Weight Feeder |
Warranty: |
1 Year |
Machinery Test: |
Provide |
Feeding Accuracy: |
±0.1%- ±0.5% |
Installation And Commissioning: |
Installation Oversea Provided; Online Technical Support |
Product Name: |
Loss-in Weight Feeder |
Warranty: |
1 Year |
Machinery Test: |
Provide |
Feeding Accuracy: |
±0.1%- ±0.5% |
Installation And Commissioning: |
Installation Oversea Provided; Online Technical Support |

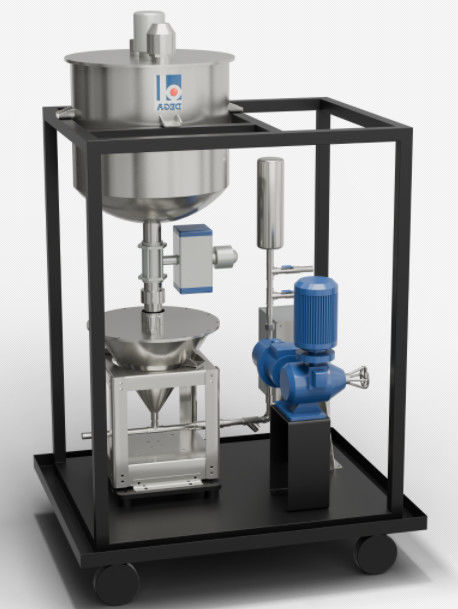

Liquid Loss-in weight feeder LW - LQ100
Product Introduction
Liquid loss-in weight feeders are suitable for handling a wide range of liquid, both low and high viscosites, at many different feedrates and in multiple industries.The different pump selection is critical as many different pumps types exist and their most be closely matched to the feed material. The different liquid pumps are selected according to different capacity and the different characteristics of liquid.
The system utilizes DEGA's MTC or other heating system to maintain the temperature of the liquid in the silo, if the liquid at normal temperature is more viscous and needs to be heated to change.
Struction specifications of LW-LQ100
| Silo Volume | 20Lt |
| Load Cell | Mettler Toledoor/Flintec optional |
| Silo Material | SS304 |
| Insulation | Optional |
| Feeding Motor | AC Motor (Diaphragm pump) |
| Feeding Capacity | 100KG |
