Product Details
Place of Origin: China
Brand Name: DEGA
Certification: CE, IOS 9001: 2015
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export wooden packing
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per Month
Drytech
Product Introduction
Drytech dehumidifiers, High energy savings; thanks to preset programs for each material, the dehumidification process is specific and related to actual consumption. With the new zeolites, a low Dew-Point can be reached much more easily and with the 3 heat recovery cost dehumidification is reduced by 47%.compared to molecular- sieve dryers, there is also no need of a connection to compressed air or to the water supply. The DDK model weighs the actual accumulation of water in the sieves and performs the regeneration ONLY once they are full. The display reads the weight of the water extracted from the material.
DEHUMIDIFIER TECHNICAL FEATURES
| Model | DD60 | DD70 | DD80 | DD110 | DD180 | DD110-R | DD180-R | DD260 | DD260-R |
| m³/h-Air flow rate | 80 | 140 | 180 | 210 | 270 | 210 | 270 | 315 | 315 |
| m³/h-Air flow rate in hopper | 58 | 85 | 90 | 110 | 180 | 110 | 180 | 260 | 260 |
| KW-Process pump | 0.4 | 0.75 | 1.3 | 1.3 | 1.6 | 1.3 | 1.8 | 2.2 | 2.2 |
| KW-Heating power | 3 | 3 | 4 | 4 | 6 | 4 | 6 | 12 | 12 |
| KW-Total power | 3.4 | 3.75 | 7.8 | 8.3 | 10.8 | 8.55 | 10.8 | 20.2 | 20.2 |
| ℃-Max process temperature | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| Kal/h-Max cooling absorption | 1680 | 1680 | 3100 | 3100 | 5500 | 3100 | 5500 | 8000 | 8000 |
| It/min at 5℃-Water consumption | 4 | 4 | 7.5 | 7.5 | 13 | 7.5 | 13 | 27 | 27 |
| Model | DD350 | DD350-R | DD500 | DD500-R | DD900 | DD900-R | DD1500 | DD1500-R | DD3000-R |
| m³/h-Air flow rate | 450 | 450 | 580 | 580 | 1050 | 1050 | 1050x2 | 1050x2 | 1050x3 |
| m³/h-Air flow rate in hopper | 350 | 350 | 500 | 500 | 900 | 900 | 1800 | 1800 | 2700 |
| KW-Process pump | 4 | 4 | 4 | 4 | 8.5 | 8.5 | 8.5x2 | 8.5x2 | 8.5x3 |
| KW-Heating power | 18 | 18 | 24 | 24 | 36 | 36 | 35x2 | 35x2 | 35x3 |
| KW-Total power | 32 | 32 | 38 | 38 | 50 | 65.7 | 111 | 111 | 160 |
| ℃-Max process temperature | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 | 190 |
| Kal/h-Max cooling absorption | 12500 | 12500 | 17000 | 17000 | 30000 | 30000 | 47500 | 47500 | 71250 |
| It/min at 5℃-Water consumption | 42 | 42 | 57 | 57 | 100 | 100 | 158 | 158 | 237 |

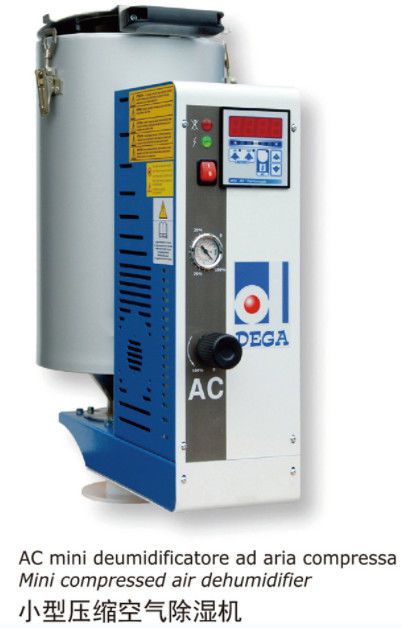

COMPRESSED AIR DEHUMIDIFIER TECHNICAL FEATURES
| Model | Hopper capacity Lt | Heating power | Max temperature | Consumption | Feeding |
| AC5 | 5 | 0.8 | 160 | 1-2.5 | 220V.50/60Hz. |
| AC15 | 15 | 1.5 | 160 | 1-2.5 | 220V.50/60Hz. |
| AC30 | 30 | 1.5 | 160 | 1-2.5 | 220V.50/60Hz. |
