Product Details
Place of Origin: China
Brand Name: DEGA
Certification: CE, IOS 9001: 2015
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard Export wooden packing
Delivery Time: 30 work days
Payment Terms: L/C, T/T
Supply Ability: 50 Sets per Month
Crytallizer ACP, ACP-PET
Product Introduction

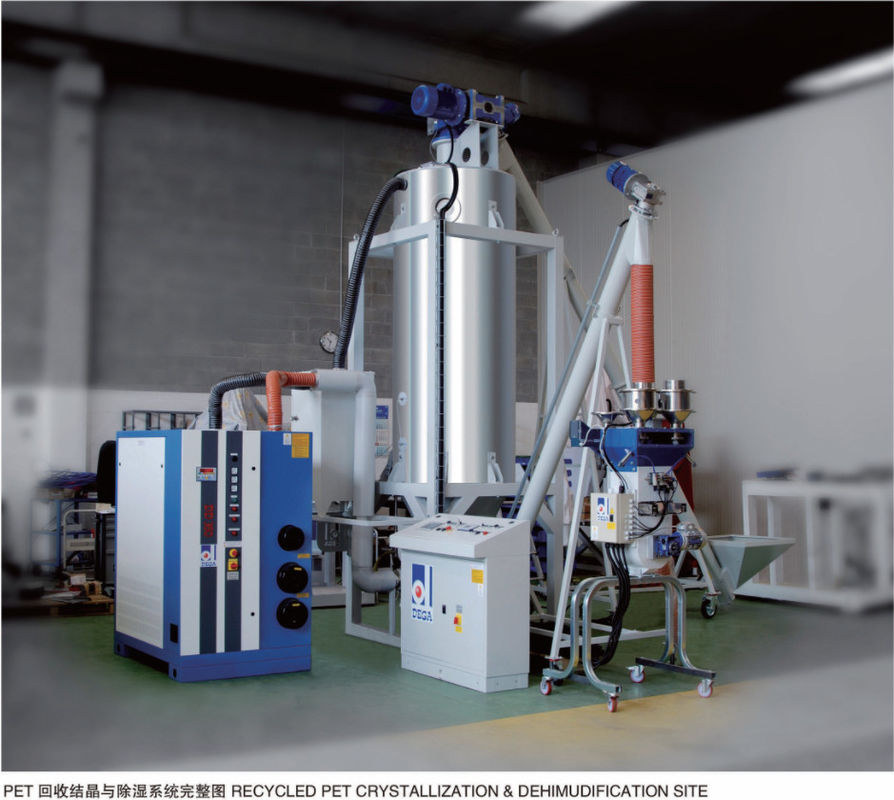

ACP Crystallizers with an innovative concept that allows continuous crystallization of PET, even re-ground material or of minimum quantities. The air flows through the rotating hollow shaft and is distributed evenly to various levels of suction hopper through the hollow diffusion reel. There is therefore no stopping of the client’s production for cleaning of the hot air diffuser, plus the fact that without the use of large filters it can be combined with a dehumidifier. The fully automatic functioning is controlled by a microprocessor managing the crystallization process without the presence of an operator, comparing the air temperature with ampere absorbed by the reel motor.
MODEL SELECTION CHART
|
Cristallizer Hopper It |
Density kg/It |
Dryer kg/h Type |
Dehumidifier kg/h Type |
| 100 | 0.85 | 40 DP4000 | 14 DD60 |
| 0.5 | 25 DP4000 | 8 DD60 | |
| 0.35 | 17 DP4000 | 5 DD60 | |
| 200 | 0.85 | 85 DP4000 | 28 DD60 |
| 0.5 | 50 DP4000 | 16 DD60 | |
| 0.35 | 35 DP4000 | 11 DD60 | |
| 700 | 0.85 | 300 DP9000 | 99 DD180 |
| 0.5 | 175 DP6000 | 48 DD110 | |
| 0.35 | 120 DP6000 | 40 DD80 | |
| 1000 | 0.85 | 425 DP15000 | 141 DD260 |
| 0.5 | 250 DP9000 | 84 DD180 | |
| 0.35 | 175 DP6000 | 58 DD110 |
|
Cristallizer Hopper It |
Density kg/It |
Dryer kg/h Type |
Dehumidifier kg/h Type |
| 1500 | 0.85 | 637 DP25000 | 212 DD500 |
| 0.5 | 375 DP12000 | 125 DD260 | |
| 0.35 | 262 DP9000 | 87 DD180 | |
| 2000 | 0.85 | 850 DP25000 | 283 DD500 |
| 0.5 | 500 DP25000 | 166 DD350 | |
| 0.35 | 350 DP12000 | 116 DD260 | |
| 3000 | 0.85 | 1275 DP35000 | 425 DD900 |
| 0.5 | 750 DP25000 | 250 DD500 | |
| 0.35 | 525 DP15000 | 175 DD350 | |
| 3500 | 0.85 | 1487 DP35000 | 495 DD900 |
| 0.5 | 875 DP25000 | 291 DD500 | |
| 0.35 | 612 DP15000 | 204 DD350 |
We can build machines with capacity up to 2500 kg/h (for flakes)
