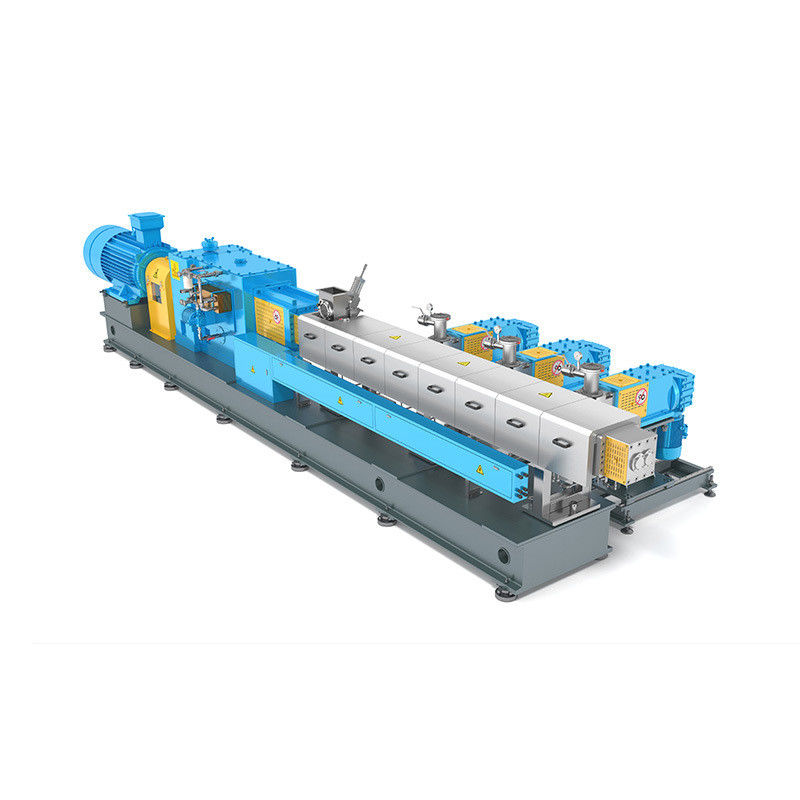

Twin Screw Extruder for High Performance

Name: Twin Screw Extruder for High Performance
Brand: DEGA
SKU: KTS High Performance Series
Rating: 4.5 (159 reviews)

Product Details

Place of Origin: China

Brand Name: DEGA

Certification: CE, IOS 9001: 2015

Model Number: KTS High Performance Series

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Standard Export Packaging

Delivery Time: 45 work days

Payment Terms: L/C, T/T

Supply Ability: 15 Sets per Month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                Integral Type Twin Screw Extruder, Stainless Steel Twin Screw Extruder, High Performance Twin Screw Extruder


Product Name:	Twin Screw Extruder	Screw Design:	Double Screw
Motor Reduce Power:	30-2400KW	Assembly Structure:	Integral Type Extruder
Machine Material:	Stainless Steel	Automatic Grade:	Automatic
Warranty:	1 Year	Machinery Test:	Provided
Installation And Commissioning:	Installation Oversea Provided; Online Technical Support

Product Name:	Twin Screw Extruder
Screw Design:	Double Screw
Motor Reduce Power:	30-2400KW
Assembly Structure:	Integral Type Extruder
Machine Material:	Stainless Steel
Automatic Grade:	Automatic
Warranty:	1 Year
Machinery Test:	Provided
Installation And Commissioning:	Installation Oversea Provided; Online Technical Support

Product Description

How to Define A High Performance Extruder

High Specifications

Specific torque 14N.m/cm³
Max. screw speed 1200rpm
Max. process temp ≥450℃

Hight Stability

Proven desgin
High quality components
High precision assembly

High-End Materials

Wear and corrosion resistance
Strict heat treatment
Super long serivce life

High Intelligence

Unique intelligent control
Auto-tuning temperature control
Flexible and customizable

Twin Screw Extruder for High Performance 0

Twin Screw Extruder for High Performance 1

Product Introduction:

KTS series models, with a specific torque of 14N.m/cm3, are a perfect combination of high performance and high cost performance.

Specifications:

Model	Ratio [Do/Di]	Specific Torque [Nm/cm³]	Max. Speed [rpm]	Max. Torque [Nm]	Max. Motor Power [KW]
KTS27	1.52	11	1200	2x120	30
KTS35	1.51	13.5	1200	2x358	90
KTS50	1.55	14	1200	2x995	250
KTS65	1.55	14	900	2x1883	355
KTS75	1.51	14	900	2x2918	550
KTS96	1.55	14	600	2x6367	800
KTS110	1.55	14	400	2x10744	800
KTS135	1.55	14	400	2x16713	1400
KTS145	1.55	14	300	2x22283	1400
KTS175	1.55	14	300	2x38200	2400
