Changzhou DEGA Machinery Co.,Ltd. lee@dega-changzhou.com 86-519-87871858-87871558
Product Details
Place of Origin: China
Brand Name: DEGA
Certification: CE, IOS 9001: 2015
Model Number: ECO Cost-effective Series
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export Packaging
Delivery Time: 45 work days
Payment Terms: L/C, T/T
Supply Ability: 15 Sets per Month

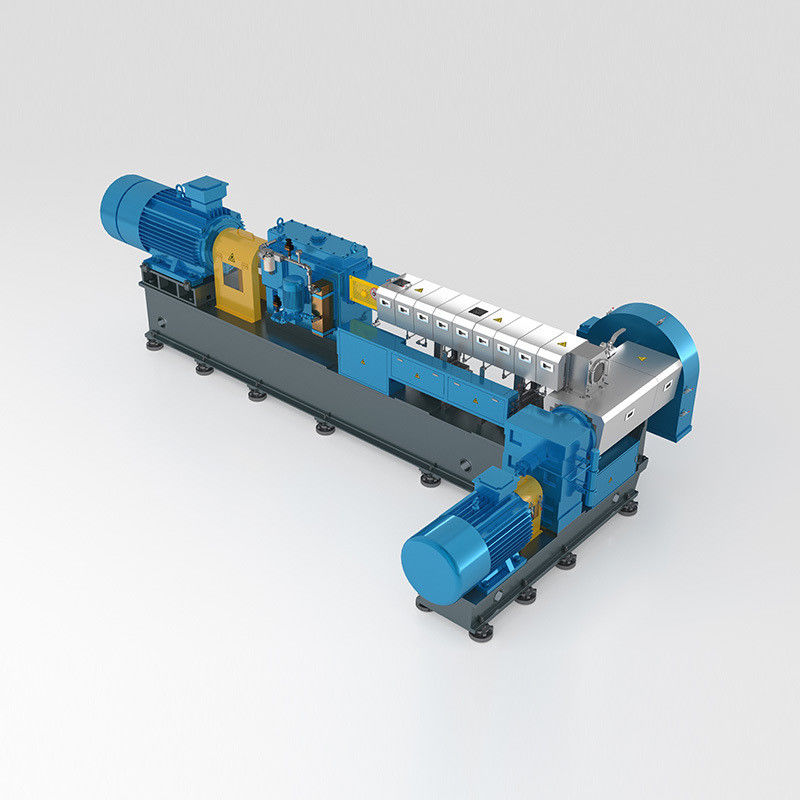

Product Name: |
Twin Screw Extruder |
Screw Design: |
Twin Screw |
Motor Reduce Power: |
30-2400KW |
Assembly Structure: |
Integral Type Extruder |
Machine Material: |
Stainless Steel |
Automatic Grade: |
Automatic |
Warranty: |
1 Year |
Machinery Test: |
Provided |
Installation And Commissioning: |
Installation Oversea Provided; Online Technical Support |
Product Name: |
Twin Screw Extruder |
Screw Design: |
Twin Screw |
Motor Reduce Power: |
30-2400KW |
Assembly Structure: |
Integral Type Extruder |
Machine Material: |
Stainless Steel |
Automatic Grade: |
Automatic |
Warranty: |
1 Year |
Machinery Test: |
Provided |
Installation And Commissioning: |
Installation Oversea Provided; Online Technical Support |
Product Introduction:
ECO series models, specific torque 9N.m/cm3, economical models.
Intelligent Control System:
Wear and Corrosion Resistant Solutions:
We offer wide range of MoC for barrels, screw elements and shafts. With out exclusively developed extremely wear and corrosion resistant material, the service life of barrels could be extended several times compared to HIP material for compounding polymers with glass and carbon fibers, ceramic and metal masses, and inorganic fillers.
Specifications:
| Model |
Ratio [Do/Di] |
Specific Torque [Nm/cm³] |
Max. Speed [rpm] |
Max. Torque [Nm] |
Max. Motor Power [KW] |
| ECO35 | 1.51 | 9 | 900 | 2x238 | 45 |
| ECO50 | 1.55 | 9 | 900 | 2x584 | 110 |
| ECO65 | 1.55 | 9 | 900 | 2x1167 | 220 |
| ECO75 | 1.51 | 9 | 900 | 2x1883 | 355 |
| ECO96 | 1.55 | 9 | 600 | 2x3979 | 500 |
| ECO50/150(T+S) | / | / | 600(T)/70(S) | / | 90(T)/45(S) |
| ECO65/180(T+S) | / | / | 600(T)/70(S) | / | 160(T)/55(S) |
| ECO75/200(T+S) | / | / | 600(T)/70(S) | / | 250(T)/75(S) |
| ECO96/250(T+S) | / | / | 600(T)/70(S) | / | 500(T)/110(S) |
Application Field:
Suitable for various modified material applications.
Extruder Service:
More than just machine maintenance, we offer full cooperation.
