Product Details
Place of Origin: China
Brand Name: DEGA
Certification: CE, IOS 9001: 2015
Model Number: KTD High Volume Series
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard Export Packaging
Delivery Time: 45 work days
Payment Terms: L/C, T/T
Supply Ability: 15 Sets per Month
Product Name: |
Twin Screw Extruder |
Screw Design: |
Twin Screw |
Motor Reduce Power: |
30-2400KW |
Assembly Structure: |
Integral Type Extruder |
Machine Material: |
Stainless Steel |
Automatic Grade: |
Automatic |
Warranty: |
1 Year |
Machinery Test: |
Provided |
Installation And Commissioning: |
Installation Oversea Provided; Online Technical Support |
Product Name: |
Twin Screw Extruder |
Screw Design: |
Twin Screw |
Motor Reduce Power: |
30-2400KW |
Assembly Structure: |
Integral Type Extruder |
Machine Material: |
Stainless Steel |
Automatic Grade: |
Automatic |
Warranty: |
1 Year |
Machinery Test: |
Provided |
Installation And Commissioning: |
Installation Oversea Provided; Online Technical Support |

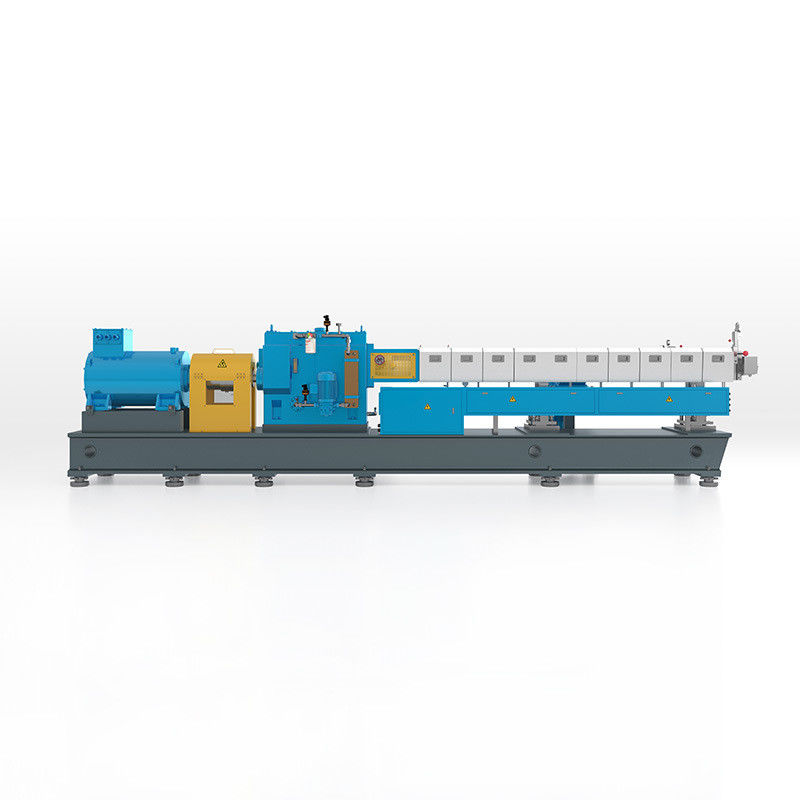

Product Introduction:
KTD series models, specific torque 11N.m/cm3, high groove depth design.
Specifications:
| Model |
Ratio [Do/Di] |
Specific Torque [Nm/cm³] |
Max. Speed [rpm] |
Max. Torque [Nm] |
Max. Motor Power [KW] |
| KTD35 | 1.68 | 11.3 | 1200 | 2x298 | 75 |
| KTD50 | 1.68 | 11.3 | 1200 | 2x843 | 250 |
| KTD65 | 1.68 | 11.3 | 900 | 2x1671 | 315 |
| KTD75 | 1.68 | 11.3 | 900 | 2x2445 | 450 |
| KTD96 | 1.68 | 11.3 | 600 | 2x5457 | 700 |
| KTD110 | 1.68 | 11.3 | 400 | 2x8953 | 800 |
Application Field:
Suitable for high filling, reactive, heat sensitive and shear sensitive material applications.
Extruder Service:
More than just machine maintenance, we offer full cooperation.
